Kikusui Bidirectional High-capacity Dc Power Supply Pxb Series

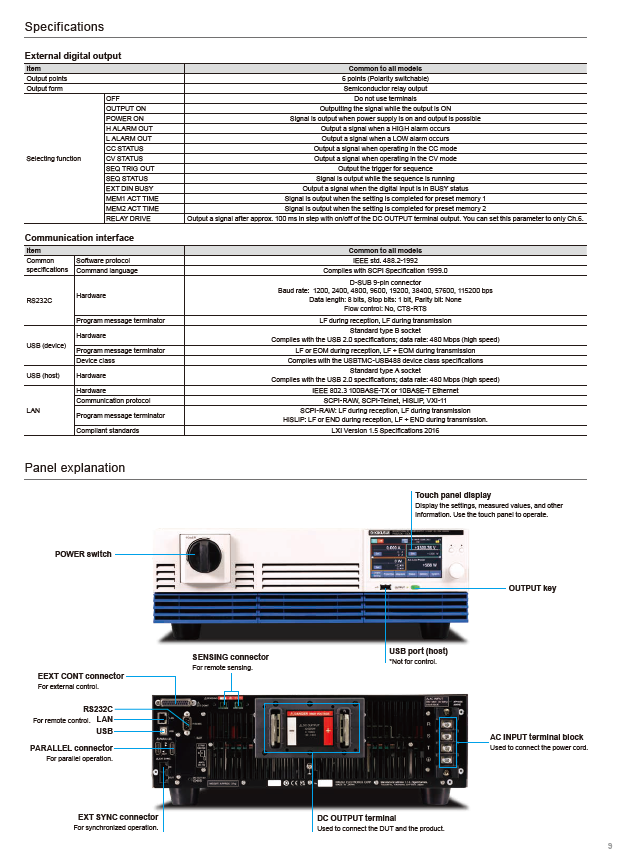

External digital output
Item Common to all models
Output points 6 points (Polarity switchable)
Output form Semiconductor relay output
Selecting function
OFF Do not use terminals
OUTPUT ON Outputting the signal while the output is ON
POWER ON Signal is output when power supply is on and output is possible
H ALARM OUT Output a signal when a HIGH alarm occurs
L ALARM OUT Output a signal when a LOW alarm occurs
CC STATUS Output a signal when operating in the CC mode
CV STATUS Output a signal when operating in the CV mode
SEQ TRIG OUT Output the trigger for sequence
SEQ STATUS Signal is output while the sequence is running
EXT DIN BUSY Output a signal when the digital input is in BUSY status
MEM1 ACT TIME Signal is output when the setting is completed for preset memory 1
MEM2 ACT TIME Signal is output when the setting is completed for preset memory 2
RELAY DRIVE Output a signal after approx. 100 ms in step with on/off of the DC OUTPUT terminal output. You can set this parameter to only Ch.6.
