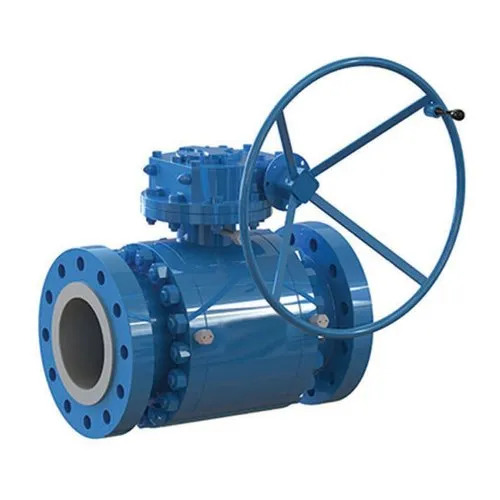

Reduced Bore Ball Valve A105 Application: Oil & Gas

Owing to our rich industrial experience and expertise we are engaged in manufacturing exporting and supplying a wide range of Reduced Bore Ball Valve A105 in Wenzhou Zhejiang China. The ball is supported by floating seats at both ends. When the valve closes two floating seats will be tightly attached to the ball. Meanwhile the stem will be mounted with sliding bearing to reduce the friction and operation torque. It is suitable for high pressure and large dimension valves.

Design Features
1.Design standard acc.to ISO14313 ASME B16.34 API 6D BS 5351;
2.Full bore and reduced bore
3.Fire safe anti-static and blowout proof stem design;
4.Emergency sealant injection;
5.Double Block and Bleed;
6.Cavity pressure self relief;
7.Low emission and live loading packing;
8.Double piston effective seat optional;
9.Optional extended stem for underground or cryogenic service.

Product Range
Body material: carbon steel stainless steel alloy steel duplex steel
Nominal diameter:2"i 60"i DN50~DN1500i
End Connection: RF RTJ BW
Pressure range: 150LBi 2500LBi PN16~PN420i
Working temperature:-46a i +500a
Operation: Lever wrench gear electric pneumatic hydraulic electro-hydraulic actuatoretc
