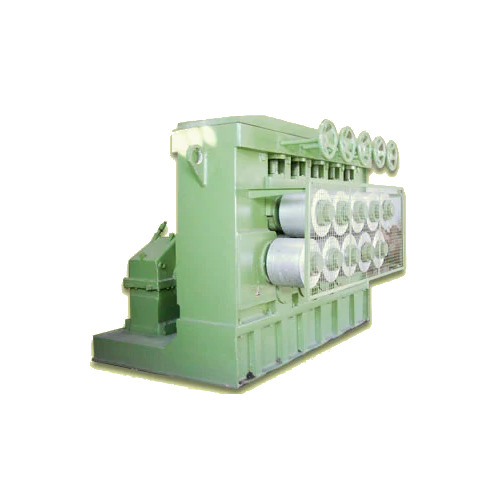

Sm Series Round Bar Straightening Machines

These SM Series Round Bar Straightening Machines are fabricated by using superior and premium quality raw material which ensures hassle free work performance at its user end. These SM Series Round Bar Straightening Machines are widely available in various specifications and dimensions.

Construction Features of our SM Series Round Bar Straightening Machines :-
* Frame: The frame is of heavy construction from M.S. Plates. The Base is so designed to collect and return coolant to the rolls.
* Main Drive: A single motor drive is provided for both work roll. The drive is taken from the motor through V belt drives. The Main Drive reduction gearboxes are totally enclosed and splash lubricated from the oil bath in the gearbox case. The gears are manufactured from steel through hardened. All shafts rotate in heavy-duty roller bearings.
* Rolls: Rolls are manufactured from High Carbon high Chrome Steel through hardened or Chilled Steel and ground. Rolls fixed on two shafts operate in heavy duty P.B. Bushesa Seals are provided to exclude dirt and lubricating solutions. Hand operated force lubricating pump will be provided with the machine.
* Rolls Adjustment: Provision is made to allow for horizontal setting of both the rolls to such the size of bars. This adjustment is through gears by means of Hand Wheel.
* Guide Adjustment: Provision is made to allow for vertical setting of both the guide plates such the size of the bars. The adjustment is through gears by means of hand wheels.
