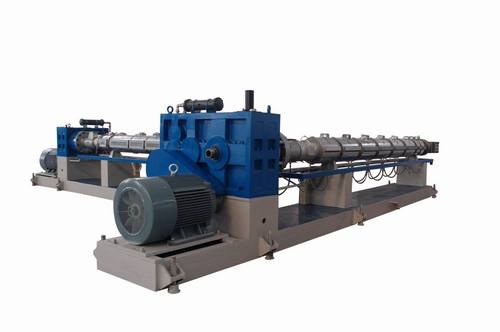

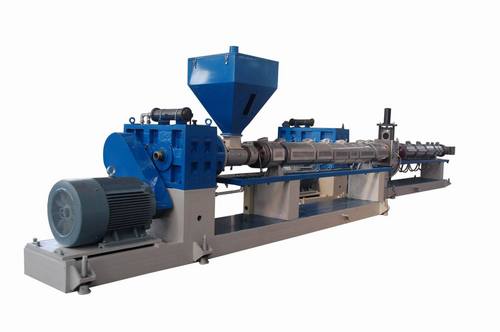

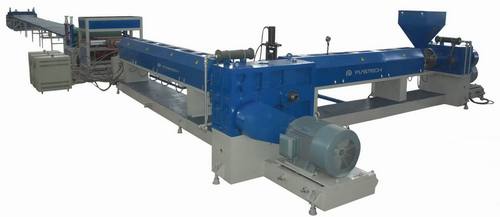

Xps Processing Line

Model: PTS135-150-XF
Output: 300 - 350 kg/h or 180 - 200 m3/24h
Model: PTS150-200-XF
Output: 400 - 550 kg/h or 300 - 320 m3/24h
Product: Extruded polystyrene (XPS) foam board
Board width: 600 mm 900mm 1200mm after trimmed.
Board thickness: 20mm--100mm
Density: 30-40kg/ m3
Material: Polystyrene(PS)
Blowing agent: Freon(HFCHCFCCO2)

Standard configuration
1 Mixing system
2 Feeding system
3 Primary extruder
4 Metering pump
5 Hydraulic screen changer
6 Secondary extruder
7 Slot die
8 Oil temperature controller
9 Board calibrator
10 First haul-off system
11 Take-off system
12 Cut-to-width system
13 Second haul-off system
14 Cut-to-length system
15 Electrical control equipment
* Margin recycle system (PTRECYCLERTM)
* Optional finishing machines
1 Embossing unit
2 Planer (Rough; Fine)
3 Groover (Straight; Dovetail)
4 Edge trimmer (SL; RC; TG)
5 Slice cutting machine
6 Aluminium foil composite machine
